Tutorial

Let's build a very simple app using Vuex to understand how to use it. For this example, we're building an app where you press a button, and it increments a counter.

We are using this simple example to explain the concepts, and the problems Vuex aims to solve - how to manage a large app which uses several components. Consider if this example used three components:

components/App.vue

The root component, which contains two other child components:

• Display to display the current counter value.

• Increment which is a button to increment the current value.

  <template>
  <div>
  <Display></Display>
  <Increment></Increment>
  </div>
  </template>

  <script>

  import Display from './Display.vue'
  import Increment from './Increment.vue'

  export default {
  components: {
  Display: Display,
  Increment: Increment
  }
  }
  </script>


components/Display.vue

<template>
  <div>
    <h3>Count is 0</h3>
  </div>
</template>

<script>
export default {
}
</script>

components/Increment.vue

<template>
  <div>
    <button>Increment +1</button>
  </div>
</template>

<script>
export default {
}
</script>

Challenges without Vuex

• Increment and Display aren't aware of each other, and cannot pass messages to each other.
• App will have to use events and broadcasts to coordinate the two components.
• Since App is coordinating between the two components, they are not re-usable and tightly coupled. Re-structuring the app might break it.

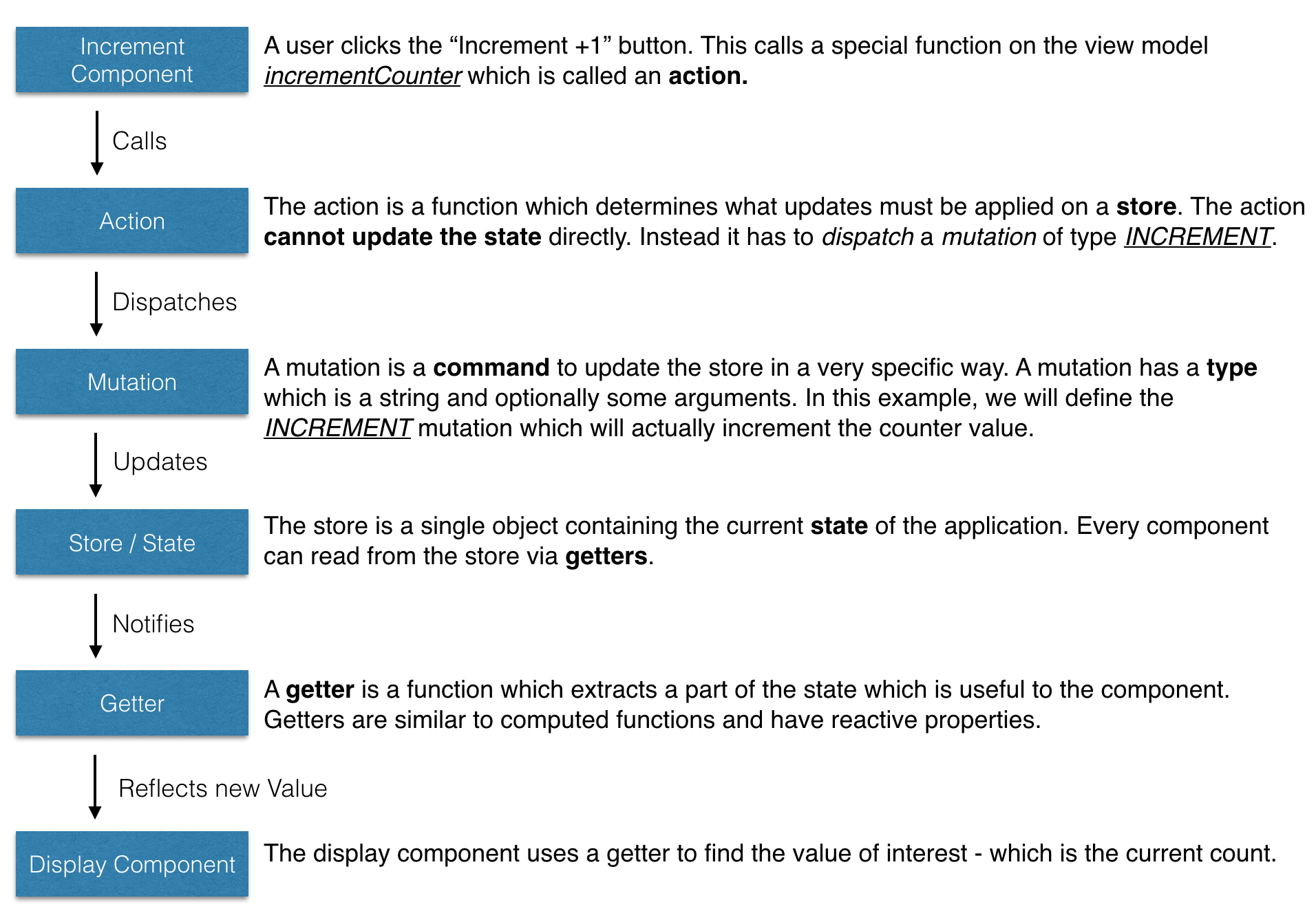

Vuex "flow"

These are the steps that take place in order:

This might seem a little excessive for incrementing a counter. But do note that these concepts work well in larger applications, improving maintainability and making your app easier to debug and improve in the long run. So let's modify our code to use Vuex.

Step 1: Add a store

The store holds the data for the app. All components read the data from the store. Before we begin, install Vuex via npm:

$ npm install --save vuex

Create a new file in vuex/store.js

import Vue from 'vue'
import Vuex from 'vuex'

// Make vue aware of Vuex
Vue.use(Vuex)

// Create an object to hold the initial state when
// the app starts up
const state = {
  // TODO: Set up our initial state
}

// Create an object storing various mutations. We will write the mutation
const mutations = {
  // TODO: set up our mutations
}

// Combine the initial state and the mutations to create a Vuex store.
// This store can be linked to our app.
export default new Vuex.Store({
  state,
  mutations
})

We need to make our app aware of this store. To do this we simply need to modify our root component.

Edit components/App.vue and add the store.

import Display from './Display.vue'
import Increment from './Increment.vue'
import store from '../vuex/store' // import the store we just created

export default {
  components: {
    Display: Display,
    Increment: Increment
  },
  store: store // make this and all child components aware of the new store
}

Tip: With ES6 and babel you can write it as

components: {
  Display,
  Increment,
},
store

Step 2: Set up the action

The action is a function which is called from the component. Action functions can trigger updates in the store by dispatching the right mutation. An action can also talk to HTTP backends and read other data from the store before dispatching updates.

Create a new file in vuex/actions.js with a single function incrementCounter.

// An action will receive the store as the first argument.
// Since we are only interested in the dispatch (and optionally the state)
// we can pull those two parameters using the ES6 destructuring feature
export const incrementCounter = function ({ dispatch, state }) {
  dispatch('INCREMENT', 1)
}

And let's call the action from our components/Increment.vue component.

<template>
  <div>
    <button @click='increment'>Increment +1</button>
  </div>
</template>

<script>
import { incrementCounter } from '../vuex/actions'
export default {
  vuex: {
    actions: {
      increment: incrementCounter
    }
  }
}
</script>

Notice some interesting things about what we just added.

1. We have a new object vuex.actions which includes the new action.
2. We didn't specify which store, object, state, etc. Vuex wires everything up for us.
3. We can call the action by using this.increment() in any method.
4. We can also call the action using the @click parameter making increment like any regular Vue component method.
5. The action is called incrementCounter but we can use any name which is appropriate.

Step 3: Set up the state and mutation

In our vuex/actions.js file we dispatch an INCREMENT mutation but we haven't written how to handle it yet. Let's do that now.

Edit vuex/store.js

const state = {
  // When the app starts, count is set to 0
  count: 0
}

const mutations = {
  // A mutation receives the current state as the first argument
  // You can make any modifications you want inside this function
  INCREMENT (state, amount) {
    state.count = state.count + amount
  }
}

Step 4: Get the value into the component

Create a new file called vuex/getters.js

// This getter is a function which just returns the count
// With ES6 you can also write it as:
// export const getCount = state => state.count

export function getCount (state) {
  return state.count
}

This function returns a part of the state object which is of interest - the current count. We can now use this getter inside the component.

Edit components/Display.vue

<template>
  <div>
    <h3>Count is {{ counterValue }}</h3>
  </div>
</template>

<script>
import { getCount } from '../vuex/getters'
export default {
  vuex: {
    getters: {
      // note that you're passing the function itself, and not the value 'getCount()'
      counterValue: getCount
    }
  }
}
</script>

There's a new object vuex.getters which requests counterValue to be bound to the getter getCount. We've chosen different names to demonstrate that you can use the names that make sense in the context of your component, not necessarily the getter name itself.

You might be wondering - why did we choose to use a getter instead of directly accessing the value from the state. This concept is more of a best practice, and is more applicable to a larger app, which presents several distinct advantages:

1. We may want to define getters with computed values (think totals, averages, etc.).
2. Many components in a larger app can use the same getter function.
3. If the value is moved from say store.count to store.counter.value you'd have to update one getter instead of dozens of components.

These are a few of the benefits of using getters.

Step 5: Next steps

If you run the application, now you will find it behaves as expected.

To further your understanding of Vuex, you can try implementing the following changes to the app, as an exercise.

• Add a decrement button.
• Install VueJS Devtools and play with the Vuex tools and observe the mutations being applied.
• Add a text input in another component called IncrementAmount and enter the amount to increment by. This can be a bit tricky since forms in Vuex work slightly differently. Read the Form Handling section for more details.
